R&S®NGP800 Power supply series

A performance power supply from R&S Essentials

R&S®NGP800 Power supply series
Open Lightbox
R&S®NGP800 Power supply series
Open Lightbox
R&S®NGP800 Power supply series
Open Lightbox
R&S®NGP800 Power supply series
Open Lightbox
R&S®NGP800 Power supply series
Open Lightbox
R&S®NGP800 Power supply series
Open Lightbox
R&S®NGP800 Power supply series
Open Lightbox
R&S®NGP800 Power supply series
Open Lightbox
R&S®NGP800 power supply series, front view R&S®NGP800 power supply series, front low R&S®NGP800 power supply series, 3D R&S®NGP800 power supply series, back view R&S®NGP800 power supply series, 3D R&S®NGP800 power supply series, front view R&S®NGP800 power supply series, front view R&S®NGP800 power supply series, front view

Key facts

  • Max. output power: 800 W
  • Max. voltage per channel: 32 V or 64 V
  • Max. current per channel: 10 A or 20 A
  • Up to 250 V or 80 A in series or parallel operation
  • Intuitive, price-transparent online product configurator

Boost your efficiency with quadcore power

The R&S®NGP800 DC power supply series, comprising of five models with 400 W or 800 W, provides maximum power at a variety of operating points. The two or four 200 W outputs can each supply up to 64 V or up to 20 A. Electrically equivalent and galvanically isolated outputs can be wired in series or parallel for up to 250 V or 80 A. The R&S®NGP800 DC power supply series is ideal for a variety of T&M scenarios: automotive, R&D, manufacturing and general purpose use.
Configure your R&S®NGP800 with our online configurator tool for:
- full price transparency
- ease of configuration
- fast processing of your request and purchase from authorized distributor of your choice
Click "configure and quote" and start your configuration now.


Features & benefits

Touch display

High-resolution touch display for easy operation

The large high-resolution touch display makes operation easy. Quickly navigate through the menus to access all functions and settings. Enter values much faster with the virtual keyboard instead of a knob. The home screen gives you a clear overview of all your channels. Each channel can be selected for a more detailed view with a wide variety of additional information, such as statistics and icons indicating the status of set protection or special functions.

The home screen gives a clear overview of all channels
Open Lightbox

The home screen gives a clear overview of all channels

FlexPower

Get the maximum power at various operating points

Unlike with single range power supplies, you can generate variable voltage and current combinations within the overall power limit of 200 W per channel. This technology makes your power supply a lot more versatile, covering a wider range of applications.

V/I-curves for 32 V output and 64 V output
Open Lightbox

V/I-curves for 32 V output and 64 V output

Parallel & serial operation

Up to 250 V or 80 A

If your application requires more voltage or current, connect the outputs in series or parallel and get up to 250 V (R&S®NGP824) or 80 A ( R&S®NGP804) - for the flexibility you always wanted. Using the tracking function, voltage and current are adjusted on all selected channels simultaneously.

Parallel & serial operation
Open Lightbox

Parallel & serial operation

Built-in measurements

Integrated statistics

The built-in measurements reduce the need for an external multimeter and simplify the setup. The separate voltage and current meters on each output have a resolution of 1 mV and 0.5 mA over the full output range of 64 V and 20 A. Integrated statistics show the min, avg and max values for power, voltage and current as well as the energy count.

One-channel-view with details and integrated statistics
Open Lightbox

One-channel-view with details and integrated statistics

Data Logging

Key to long-term monitoring

Logging data is key to long-term monitoring, reviewing test setups and repeating test conditions when analyzing power behavior or optimizing power consumption. The R&S®NGP800 power supplies simultaneously log voltage and current measurements over time on all outputs. You can easily export the timestamped data as a .CSV file for reports and documentation.

Logging setup dialog
Open Lightbox

Logging setup dialog

Arbitrary function

QuickArb

Emulate the normal behavior of your power subsystem early in the design process and simulate power problems for DUT design verification. The QuickArb function lets you generate voltages that vary over time and current sequences of output changes with dwell times down to 1 ms. Load up to eight subgroup files into one sequence to create complex patterns.

Fast programming of sequences with the Arb Editor
Open Lightbox

Fast programming of sequences with the Arb Editor

Graphical View

Display of measured data

The Graphical View function allows fast and convenient analysis, especially of changing processes, such as charging and discharging or switching between different operating states of a DUT. Integrating all measurements in one box not only reduces the complexity of the test setup, but also ensures the integrity and correlation of all measurements by design.

The Graphical View function interface on an R&S®NGP800 power supply
Open Lightbox

The Graphical View function interface on an R&S®NGP800 power supply

Remote control via VNC client

Control your instrument from anywhere

Via VNC connection the R&S®NGP800 power supplies can be controlled and operated from any location. All functions that can be reached by manual operation can also be accessed via remote control by VNC. The connection between power supply and PC can be established via LAN in the same network.

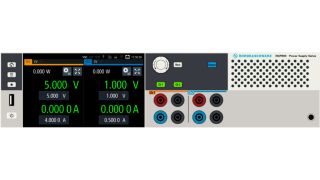

Remote control of R&S®NGP800 power supply via VNC
Open Lightbox

Remote control of R&S®NGP800 power supply via VNC

Easy to use, price transparent configurator

We strive to give customers the right T&M instrument quickly, easily, and with full price transparency. The R&S®NGP800 and other instruments from the R&S Essentials portfolio can now be configured online, providing you with the following benefits:
- User-friendly and easy to navigate configurator
- Full cost transparency at every step of configuration
- Fast order processing through authorized distribution partners
- Next-day delivery from selected partners

Open Lightbox

Available models

Available models
Models
Number of output channels
Max. output power
Output voltage per channel
Output current per channel
Starting at

R&S®NGP802

Order number 5601.4007.05

Number of output channels
2
Max. output power
400 W
Output voltage per channel
0 V to 32 V
Output current per channel
0 A to 20 A
Starting at
Price On Request

R&S®NGP804

Order number 5601.4007.02

Number of output channels
4
Max. output power
800 W
Output voltage per channel
0 V to 32 V
Output current per channel
0 A to 20 A
Starting at
Price On Request

R&S®NGP814

Order number 5601.4007.04

Number of output channels
4
Max. output power
800 W
Output voltage per channel
Ch 1, Ch 2: 0 V to 32 V
Ch 3, Ch 4: 0 V to 64 V
Output current per channel
Ch 1, Ch 2: 0 A to 20 A
Ch 3, Ch 4: 0 A to 10 A
Starting at
Price On Request

R&S®NGP822

Order number 5601.4007.06

Number of output channels
2
Max. output power
400 W
Output voltage per channel
0 V to 64 V
Output current per channel
0 A to 10 A
Starting at
Price On Request

R&S®NGP824

Order number 5601.4007.03

Number of output channels
4
Max. output power
800 W
Output voltage per channel
0 V to 64 V
Output current per channel
0 A to 10 A
Starting at
Price On Request
Specifications
Electrical specifications
Number of output channels 2 or 4
Total output power max. 400 W/800 W
Maximum output power per channel 200 W
Output voltage per channel 0 V to 32 V (32 V channels)
0 V to 64 V (64 V channels)
Maximum output current per channel 20 A (32 V channels)
10 A (64 V channels)
Voltage ripple and noise (20 Hz to 20 MHz) < 3 mV (RMS)
< 30 mV (Vpp) (meas.)
Current ripple and noise (20 Hz to 20 MHz) < 3.5 mA (RMS) (meas.)
Load recovery time (10 % to 90 % load change within a band of ± 20 mV of set voltage) < 400 μs (meas.)
Programming resolution voltage 1 mV
Programming resolution current 0.5 mA
Output measurements
Readback resolution voltage 1 mV
Readback resolution current 0.5 mA
Readback accuracy voltage ±(% of output + offset) < 0.05 % + 5 mV (32 V channels)
< 0.05 % + 10 mV (64 V channels)
Readback accuracy current ±(% of output + offset) < 0.1 % + 20 mA (32 V channels)
< 0.1 % + 10 mA (64 V channels)
Special functions
Measurement functions voltage, current, power, energy
Protection functions OVP, OCP, OPP, OTP
FuseLink function
Fuse delay at output-on
Sense function
Sink mode
Output sequencing
Trigger input/output
Arbitrary function ● (QuickArb)
Analog/modulation interface
Data logging ● (standard mode)
Display and interfaces
Display TFT 5" 800 pixel × 480 pixel WVGA touch
Rear panel connections 8-pin connector block per 2 channels
Remote control interfaces: standard USB, LAN
Remote control interfaces: optional IEEE-488 (GPIB)
General data
Dimensions (W × H × D) 362 mm × 100 mm × 451 mm
Weight 7.5 kg/8.0 kg
Rack installation R&S®ZZA-GE23 option

Available options

General
Product
Description
R&S®NG-B105

Order number 5601.6000.02

Description

IEEE-488 (GPIB) interface

General analysis
Product
Description
R&S®NGP-K103

Order number 5601.6300.03

Description

Digital trigger I/O

R&S®NGP-K107

Order number 5601.6200.03

Description

Analog input

General accessories
Product
Description
R&S®ZZA-GE23

Order number 5601.4059.02

Description

19" rack adapter, 2 HU
