Key facts
All Rohde & Schwarz oscilloscopes support triggering and decoding of the I²S audio standard, left and right justified and TDM signals. You can set up decoding in seconds. For analysis, results can be viewed as color-coded telegrams and in a table. Errors are identified by the hardware-accelerated trigger. You can trigger on data, window, frame condition, word select and various error conditions.
Bus setup in seconds with the app cockpit
Starting from the app cockpit, it only takes a few steps to configure any given protocol. Once the bus to decode has been chosen, the connected channels selected and the correct levels set, decoding begins automatically.
Bus decoding selection with the app cockpit.
You can use the R&S®RTx-K5 option to decode the most common I²S audio signals, left justified, right justified and TDM.
Decoded frames are color-coded.

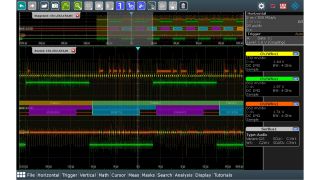

Telegram display as color-coded bus signals and in decode table

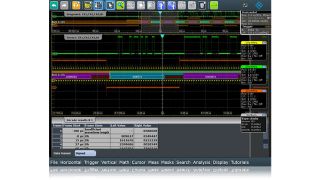

You can analyze the decoded bus frames by overlaying the signal with color-coded data. Address and data content can be displayed in hex, bin or ASCII format. You always have the best overview with the flexible screen setup. The telegrams can also be displayed in a concise table.
Decoded frames are color-coded.
Strong trigger capability on data, window, frame condition, word select and various error conditions
The protocol-specific trigger lets you reliably isolate protocol events and errors. Thanks to high acquisition rates, Rohde & Schwarz oscilloscopes are ideal for finding errors quickly, allowing decoding of protocol-specific trigger results. The hardware-based triggering is available on specific protocol content, e.g. addresses, data and protocol errors.

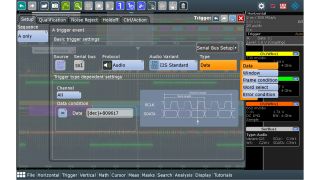

Protocol trigger setup dialog.
Powerful search and navigate capability
Comprehensive search functions simplify the analysis of long signal sequences. You can search for waveforms based on different criteria, such as signal faults or protocol content. All detected events are shown in a table with timestamps. The individual events can be examined in a zoom window with simple navigation between events.

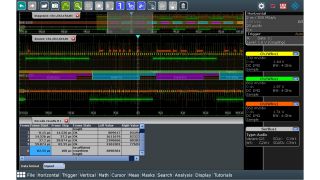

Powerful searching, even in long recordings
