R&S®NetOp

R&S®NetOp
라이트박스 열기

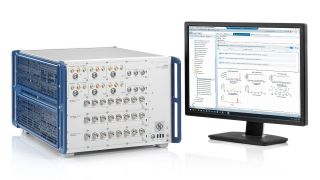

R&S®NetOp, Application Image

주요 사항

  • 주요 네트워크 사업자에 대한 포괄적 지원
  • 전체 RAT(5G NSA/SA, 4G, 3G, 2G) 지원
  • 통신 사업자 전용 프로토콜 테스트를 위한 R&S®NPT
  • 성능 벤치마킹 및 최적화를 위한 R&S®PQA
  • IMS 서비스 VoNR, ViNR, RCS 테스트를 위한 R&S®ATE

선도적 5G 통신 사업자 인증 테스트 시스템

R&S®NetOp는 네트워크 사업자 기기 인증 테스트를 위한 선도적 플랫폼으로 선도적 티어 1 사업자를 완벽히 지원합니다.

  • 프로토콜, IMS, 데이터 성능, E911 GNSS에 대응하는 원스톱 매장으로서 다음과 같은 통신 사업자를 지원합니다.
  • 북미: AT&T, Verizon Wireless, T-Mobile US
  • 남미: America Movil
  • 중국: China Mobile, China Unicom, China Telecom
  • 일본: NTT DoCoMo, Softbank, KDDI

기능 및 장점

NPT – 풀 스택 Signaling / 프로토콜 테스트

NPT – 5G까지 풀 스택 Signaling / 프로토콜 테스트

티어 1 사업자는 3GPP 테스트 요구사항 외에도 보조 프로토콜 Test Case를 검증할 의무가 있으며, 이러한 Test Case는 NPT 플랫폼에서 해결할 수 있습니다.

NPT는 주요 네트워크 사업자의 최다 통신 사업자 인증 Signaling Test Case를 제공합니다.

여기에서 IRAT, Carrier Aggregation, e911, 에러 시나리오, 기타 사업자 관련 Signaling 테스트를 수행할 수 있습니다.

PQA – 고급 데이터 성능

PQA – 5G까지 고급 데이터 성능 테스트

R&S PQA는 전 세계 주요 네트워크 사업자의 데이터 성능 요구사항을 검증하기 위해 손쉽게 사용할 수 있는 툴입니다.

5G SA 및 NSA, 4G, 2G/3G를 포함한 모든 RAT가 지원됩니다

라이트박스 열기

ATE – IP 애플리케이션 계층

ATE – 최대 5G까지 테스트하는 IP 애플리케이션 계층

R&S ATE는 DUT IMS 및 RCS 클라이언트와 주요 네트워크 사업자 전용 요구사항 간 호환성을 검증하는 데 간편하게 사용할 수 있는 선도적 플랫폼입니다.
이 플랫폼은 모든 티어 1 사업자를 위한 올인원 IMS 솔루션을 제공하며 5G(FR1 및 FR2)까지 모든 RAT를 지원합니다. Test Case는 RCS, Voice & Video over NR, VoLTE, VoWifi, IR94, 5G EPS FB, e911 및 호출 시나리오를 지원합니다.

라이트박스 열기
