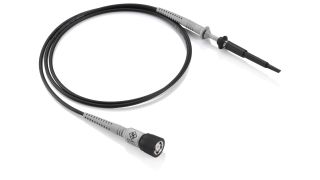

Passive probes for oscilloscopes, front high Passive probes for oscilloscopes, front view Passive probes for oscilloscopes, front high Passive probes for oscilloscopes, front view Passive probes for oscilloscopes, front view Passive probes for oscilloscopes, front high Passive probes for oscilloscopes, front view

Key facts

  • Bandwidth: up to 700 MHz
  • Dynamic range: up to 1000 V (RMS)
  • All-rounders for general purpose applications
  • Extensive accessories for optimal contacts

Brief description

Rohde & Schwarz passive probes are all rounders in the probe world. They are a low-cost, general purpose solution for a broad range of applications.

Available models

Available models
Models
Bandwidth
Max. voltage
Attenuation factor
Input impedance
Comment

R&S®RT-ZP1X

Order number 1333.1370.02

Bandwidth
38 MHz
Max. voltage
55 V (RMS) (CAT II)
Attenuation factor
1:1
Input impedance
1 MΩ || 39 pF
Comment
-

R&S®RT-ZP03S

Order number 1803.1001.02

Bandwidth
300 MHz
Max. voltage
400 V (RMS)
55 V (RMS)
Attenuation factor
10:1
Input impedance
10 MΩ || 12 pF

Comment
-

R&S®RT-ZP05S

Order number 1333.2401.02

Bandwidth
500 MHz
Max. voltage
300 V (RMS)
Attenuation factor
10:1
Input impedance
10 MΩ || 10 pF
Comment
-

R&S®RT-ZP10

Order number 1409.7550.00

Bandwidth
500 MHz
Max. voltage
400 V (RMS)
300 V (RMS) (CAT II)
Attenuation factor
10:1
Input impedance
10 MΩ || 9.5 pF
Comment
2.5 mm tip diameter, pre-adjusted for R&S®RTO2000/R&S®RTE1000

R&S®RT-ZI10

Order number 1326.1761.02

Bandwidth
500 MHz
Max. voltage
600 V (RMS) (CAT IV)
1000 V (RMS) (CAT III)
Attenuation factor
10:1
Input impedance
10 MΩ || 12 pF
Comment
Dual and quad packs available for R&S®RTH handheld oscilloscope: R&S®RT-ZI10C-2, R&S®RT-ZI10C-4

R&S®RT-ZI10C

Order number 1326.3106.02

Bandwidth
500 MHz
Max. voltage
300 V (RMS) (CAT III)
Attenuation factor
10:1
Input impedance
10 MΩ || 11 pF
Comment
For R&S®RTH handheld oscilloscope

R&S®RT-ZI11

Order number 1326.1810.02

Bandwidth
500 MHz
Max. voltage
600 V (RMS) (CAT IV)
1000 V (RMS) CAT III
3540 V (RMS) (CAT 0)
Attenuation factor
100:1
Input impedance
100 MΩ || 4.6 pF
Comment
For R&S®RTH handheld oscilloscope

R&S®RT-ZPMMCX

Order number 1803.1599.02

Bandwidth
700 MHz
Max. voltage
30 V (RMS)
Attenuation factor
25:1
Input impedance
14.9 MΩ ± 1 %  || < 4pF
Comment
for MXO 4 and MXO 5

Available options

Probe accessories
Product
Description

Order number 1409.7566.02

Description

Acc. kit for R&S®RT-ZP(M)10/RT-ZP1X/-ZP11 passive probes

Set for RT(M)-ZP10/ ZP11/-ZP1X incl. 1*adj. tool, 1*BNC adapter 2.5, 1*ring set, 1*dual adapter, 1*ground blade 2.5, 1* ground lead 15 cm, 5* ground spring 2.5, 1* IC-cap

Order number 1416.0428.02

Description

Mini clips

10 clips

Order number 1416.0434.02

Description

Micro clips

4 clips

Order number 1416.0440.02

Description

Lead set (5 x 6cm/2.4", 5 x 15cm/5.9")

Order number 1317.7031.02

Description

Probe pouch for R&S®RTO2000 and R&S®RTE1000 oscilloscopes

Order number 1335.7875.02

Description

Accessory case for probes and small parts for all Rohde and Schwarz oscilloscopes

Order number 1326.1978.02

Description

Accessory replacement set for R&S®RT-ZI10 and R&S®RT-ZI11

Contains push-on hook clip, push-on reference contact, reference lead with crocodile clip, push-on insulating sleeve, set of color clips.

Order number 1326.1984.02

Description

Accessory extension set for R&S®RT-ZI10 and R&S®RT-ZI11

Contains test clip with steel jaws, push-on safety jaw clip, silicone-insulated reference leads, push-on Ø 4 mm test probe, Ø 2 mm reference lead with hook clip, BNC male connector to Ø 4 mm sockets, push-on BNC male connector.
