Simulation of Avionics Systems

Simulation of Avionics Systems
Open Lightbox
Simulation of avionics systems Instrument options, Application Image

Key facts

  • Emulation of instrument landing system (ILS)
  • Emulation of VHF omnidirectional radio range (VOR)
  • Emulation of distance measuring equipment (DME)
  • Emulation of ground-based augmentation systems (GBAS)

Testing flight navigation receivers

Traditional ground-based flight navigation aids such as VOR, DME or ILS still play an important role in enroute navigation, precision approaches and landings. Landings can also be performed using satellite-based navigation in combination with differential corrections from local ground-based augmentation systems (GBAS). Onboard navigation receivers that use these technologies need to be tested under controlled and repeatable conditions. Rohde & Schwarz offers various solutions that generate signals for such navigation flight systems.

Features & benefits

Test like it's real

Avionics receiver testing under realistic conditions

Avionics test solutions from Rohde & Schwarz allow avionics receivers to be exposed to a realistic signal environment, i.e. to signal reception conditions that are very similar to those for a receiver onboard a plane. A combined GPS/GBAS simulation generates GBAS messages based on differential corrections consistent with the simulated GNSS errors. This enables advanced multimode receiver testing.

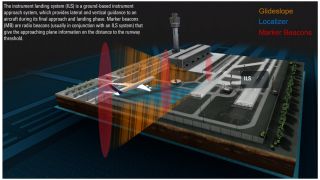

ILS

Feature set

  • Generation of ILS localizer signal
  • Generation of ILS glideslope signal
  • Generation of marker beacons

Open Lightbox

VOR

Feature set

  • Four different operating modes (NORM, VAR, subcarrier, subcarrier + FM)
  • Configurable VOR bearing angle with high resolution (0.01°)

Open Lightbox

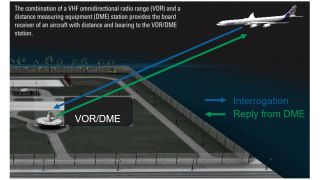

DME

Feature set

  • Interrogator mode and reply mode
  • Allows testing of DME ground stations and DME aircraft equipment
  • DME signal analysis in combination with the R&S®NRP-Z81 power sensor

Open Lightbox

GBAS

Feature set

  • Provision of GBAS messages via VHF link
  • Simultaneous simulation of up to 11 GBAS frequency channels emulating multiple VHF data broadcast (VDB) towers
  • Generation of 1, 2, 4 or 11 message types
  • Support of real GBAS data generation based on user-configurable waypoint files and differential GNSS data
  • Flexible message type scheduling
  • Multimode receiver testing by means of simultaneous GNSS/GBAS simulations with differential corrections consistent with simulated GNSS errors

Open Lightbox

Available models

R&S®SMBV100B
Models
Description
Base unit

R&S®SMBVB-K111

Order number 1423.8020.02

Click on order no. to copy
Order number 1423.8020.02 is now copied to your clipboard.
Description
GBAS
Base unit

R&S®SMBVB-K152

Order number 1423.8137.02

Click on order no. to copy
Order number 1423.8137.02 is now copied to your clipboard.
Description
VOR
Base unit

R&S®SMBVB-K153

Order number 1423.8143.02

Click on order no. to copy
Order number 1423.8143.02 is now copied to your clipboard.
Description
DME
Base unit

R&S®SMBVB-K151

Order number 1423.8120.02

Click on order no. to copy
Order number 1423.8120.02 is now copied to your clipboard.
Description
ILS
Base unit
