Key facts
Starting at USD 12,5001
The R&S®FSH handheld spectrum analyzer is also a network analyzer, cable and antenna analyzer, interference hunting analyzer and power meter. The feature-packed analyzer makes field measurements simple and efficient. The rugged design and built-in handle makes it ideal for any outdoor tasks.
Quick links
The R&S®FSH handheld spectrum analyzer has all the essential functions for indoor and outdoor applications:
An indispensable tool in the field
Perfect for cable measurements and over-the-air measurements
The R&S®FSH handheld spectrum analyzer comes in several models. This all-in-one analyzer has a built-in tracking generator, VSWR bridge and bias tee. You no longer need multiple analyzers for field measurements.
Ready to go
You only need one analyzer
Despite its small form factor, the R&S®FSH handheld spectrum analyzer has excellent sensitivity and third order intercept characteristics. The analyzer has a good dynamic range for both low-power and high-power signals.
An analyzer you can trust
You can always rely on R&S®FSH handheld spectrum analyzers for your measurements

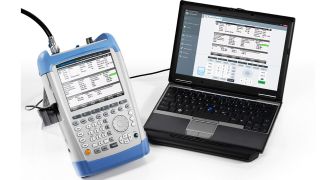

Do you have limited time on site? R&S®InstrumentView software can predefine measurement parameters and steps before you go to the site. This saves time and reduces human error in the field.
Increase productivity with R&S®InstrumentView
R&S®InstrumentView software can predefine test setups with the wizard function or the EMF configuration tab.
Order number 1309.6000.04
Order number 1309.6000.14
Order number 1309.6000.24
Order number 1309.6000.08
Order number 1309.6000.18
Order number 1309.6000.28
Order number 1314.2000.13
Order number 1314.2000.23
Order number 1314.2000.20
Order number 1314.2000.30
Order number 1304.5958.02
Li-Ion Battery Pack 6.75 Ah
Installed at factory; upgrade of the battery from 4.5 Ah to 6.75 Ah
Order number 1304.5864.02
GSM, EDGE measurement application
Order number 1304.5641.02
3GPP WCDMA BTS/NodeB Application for Pilot Channel and EVM Measurements
Order number 1304.5758.02
3GPP WCDMA BTS/NodeB Application for Code Domain Power Measurements
(requires R&S®FSH-K44)
Order number 1304.5729.02
CDMA2000® BTS Application for Pilot Channel and EVM Measurements
Order number 1304.5764.02
CDMA2000® BTS Application for Code Domain Power Measurements
(requires R&S®FSH-K46)
Order number 1304.5787.02
1xEV-DO BTS Application for Pilot Channel and EVM Measurements
Order number 1304.5806.02
1xEV-DO BTS PN-Scanner and Time-Domain-Power measurement application
R&S®FSH-K47 required (software license)
Order number 1304.5841.02
TD-SCDMA BTS Power and EVM Measurements
Order number 1304.5858.02
TD-SCDMA/HSDPA BTS Power and EVM Measurements
(R&S®FSH-K48 required)
Order number 1304.5735.02
LTE FDD Downlink Application for Pilot Channel and EVM Measurements
Order number 1304.5793.02
LTE FDD Downlink Application for Enhanced Channel and Modulation Measurements
(requires R&S®FSH-K50)
Order number 1304.5812.02
LTE TDD Downlink Application for Pilot Channel and EVM Measurements
Order number 1304.5829.02
LTE TDD Downlink Application for Enhanced Channel and Modulation Measurements
(requires R&S®FSH-K51)
Order number 1318.6100.02
NB-IoT Measurement Application
Only for R&S®FSH analyzers with serial numbers ≥ 105000.
Order number 1304.5606.02
Remote Control via LAN or USB
Order number 1304.5635.02
Receiver mode and channel scan measurement
Order number 1318.6200.02
EMF measurement application
EMF measurement application (software license)
Order number 1318.6600.02
Segmented sweep.
The R&S®FSH-K20 option turns on the second display segment in spectrum mode, creating two handheld spectrum analyzers in one.
Order number 1304.5993.02
Pulse Measurements with Power Sensor (software license),
Order number 1304.5770.02
Spectrogram measurement application
Order number 1309.7488.02
Interference analysis measurement application (software license)
Order number 1309.7494.03
Geotagging measurement application
Order number 1304.5893.02
Indoor Mapping Measurement Application (software license)
Order number 1304.5612.02
Distance-to-Fault Measurement
(for models .24/.28/.23/.30 only, R&S®FSH-Z320 or R&S®FSH-Z321 and R&S®FSH-Z28 or R&S®FSH-Z29 recommended)
Order number 1304.5629.02
Vector Reflection and Transmission Measurements
(for models .24/.28 only, requires R&S®FSH-Z28 or R&S®FSH-Z29, models .23/.30 support one port reflection and transmission measurements as standard)
Order number 1304.5658.02
Vector Voltmeter
(for models .24/.28/.23/.30 only, requires R&S®FSH-Z28 or R&S®FSH-Z29)
Order number 1173.9128.52
Order number 1328.7315.00

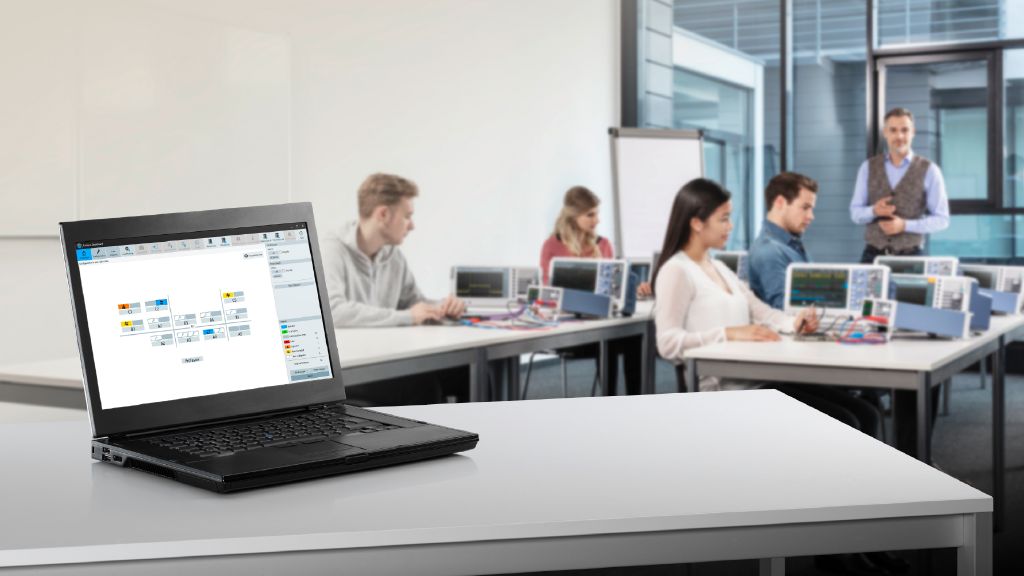

The R&S®CDS campus dashboard software simplifies teaching of student groups in laboratories with multiple workbenches.
