R&S®CMX-Z25 CMX RF port extender

The CMX500 port extender

R&S®CMX-Z25 CMX RF port extender
Open Lightbox
R&S®CMX-Z25 CMX RF port extender
Open Lightbox
R&S®CMX-Z25 CMX RF port extender
Open Lightbox
R&S®CMX-Z25 CMX RF port extender
Open Lightbox
R&S®CMX-Z25 CMX RF port extender
Open Lightbox
R&S®CMX-Z25 CMX RF port extender, side view R&S®CMX-Z25 CMX RF port extender, front high R&S®CMX-Z25 CMX RF port extender, hero view R&S®CMX-Z25 CMX RF port extender, hero view R&S®CMX-Z25 CMX RF port extender, front low

Key facts

  • Doubles, triples or even quadruples the number of CMX500 ports
  • Covers all relevant LTE and 5G FR1 frequency bands up to 8 GHz
  • Excellent dynamic range from low RF attenuation

The port extender For 5G Advanced mobile device testing

Connect any 5G mobile device to the CMX500

Complex devices under test (DUT) come with additional antenna ports to support low, mid and high bands - and advanced MIMO schemes such as 4x4 MIMO. The R&S®CMX-Z25 is the solution: up to 16 DUT ports can be supported with just four ports from the CMX500. So, even prototypes of 5G smartphones, tablets, laptops or industrial modules with an extended number of antenna ports can now be connected to a single CMX500. Together with the scalable CMX architecture any, 5G and 5G Advanced mobile device can now be tested in one go – without any recabling or 3GPP band combo limitations.

Features & benefits

Multiplies the number of CMX500 ports

Connect any DUT

The R&S®CMX-Z25 doubles, triples or even quadruples the number of CMX500 ports. So, even complex antenna port schemes can now be connected to the powerful CMX500.; 5G Advanced, new frequency bands and higher MIMO schemes - the R&S®CMX-Z25 enables connection to the sophisticated mobile devices of today and tomorrow.

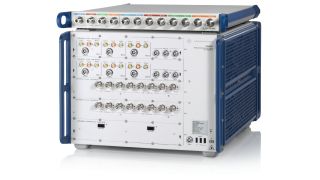

CMX500 and R&S®CMX-Z25
Open Lightbox

CMX500 and R&S®CMX-Z25

The CMX500 and R&S®CMX-Z25 work seamlessly together.

Specifications
RF characteristics
Frequency range 410 MHz to 8 GHz
Maximum input power level 30 dBm/40 dBm
